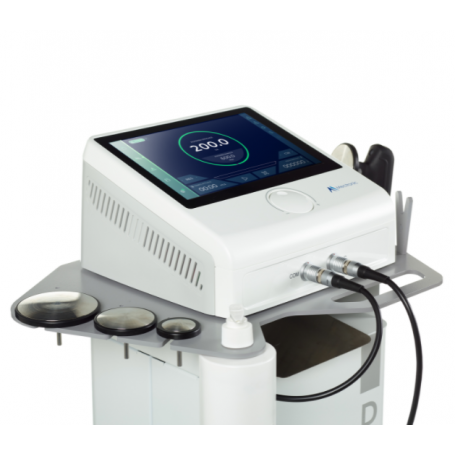

Mectronic DOCTOR TECAR PLUS therapy unit with wheeled cart

Mectronic DOCTOR TECAR PLUS therapy device is one of the most effective units for TECAR therapy in the world, as it is compact and easily transportable while reaching high power to speed up TECAR Therapy process and provide improved therapy results.

With 7 frequencies from 200kHz to 1.2 MHz, including 450kHz (TECAR Resistive mode) & 600 Khz (TECAR Capacitive mode) and a maximum peak to peak power of 600W peak to peak (Wpp), it offers everything a modern physiotherapist needs to carry out an effective TECAR Therapy. The diathermic effect that the Mectronic DOCTOR TECAR PLUS generates allows fast recovery in acute, subacute and chronic phases and it offers a large degree of personalization that can adjust to both the therapist and the patient.

Mectronic DOCTOR TECAR PLUS therapy unit is ideal for resolution of muscular-skeletal pathologies and various traumas. It provides anti-Inflammatory action, post-traumatic action, pain therapy, rehabilitation therapy, antiedemigen action making the TECAR therapy process effective, adjustable and various, based on the personalized needs. All 7 different frequencies featured, from 200kHz up to 1.2MHz, may operate in a continuous or pulsed current mode, that can switch really quick and easy thanks to the Mectronic's Real-Time Switching technology. A colour 10.1'' TFT touch display creates an interactive experience for the therapist, guiding the user through therapy management in a simple and intuitive way, making it effective from the very first use.

Mectronic DOCTOR TECAR PLUS therapy device uses a single handpiece for both capacitive and resistive modes. With one simple command its easy to switch from one mode to the other making it simple and functional. The handpiece is light ergonomic and made of biocompatible silicone that complies with the standard UL94 in order to avoid any risk of inflammation and is equipped with a system of recognition of the presence of applicators, avoiding the possibility of errors and maximizing the safety, while the TECAR plates are secured with a strong magnet.

Mectronic DOCTOR TECAR PLUS therapy unit features the Bio-transfer System, an innovative system for the measurement of the quantity of energy transferred to the tissues, which is shown on the display combined with an acoustic signal, allowing the therapist to continously monitor the provided TECAR energy to the patient. The Mectronic DOCTOR TECAR PLUS can measure the energy transferred to the tissue in the anatomical area being treated, in relation to time and the power supplied, allowing the evaluation of the active hyperemia and the resultant increase in the flow of electrolytes, showing the variation in electrical impedance during the treatment compared to the initial value, at rest.

Mectronic DOCTOR TECAR PLUS provides the user with greater control and personalization through several emission modes or the opportunity for the therapy to be set through the energy transferred (Joule mode) and the treatment time (Time mode). The adjustable pulsed mode allows the energy supply to be carried out at regular time intervals with small pauses between one pulse and the next, making the therapy more controlled, maintaining ''comfort heat'' conditions which favor correct cellular homeostasis, avoiding side effects such as increased pain. In Mectronic DOCTOR TECAR PLUS included measuring tape with Mectronuic logo, Small inox common plate, bottle of cream, Small flat plate TECAR SPX 85mm, Small rounded plate 35mm & Medium rounded plate tecar SPX 60mm.

Mectronic DOCTOR TECAR PLUS Specifications:

• Tecar therapy unit on Mectronic's wheeled cart tower
• High power, compact and easily transportable
• 7 frequencies from 3000kHz to 1.5 MHz
• With a single handpiece for both capacitive and resistive modes made by biocompatible silicon
• Software: Mectronic’s own MecOS 3.0 Omnia Real-Time Operating System
• Colour TFT 10.1'' touch screen with graphic and acoustic feedback
• Power: 200 W (600Wpp)
• Supply: 100÷240 V 50÷60 Hz
• Absorption: 250 VA
• Dimensions: 320 x 245 x 130 mm
• Weight: 5kg device only / 30 kg with trolley
• Certification: CE0051
• Conformity IEC/EC 60601-1, 60601-1-2
• Directive 93 / 42 Classification llb

Mectronic DOCTOR PLUS includes:

• 1 ''PLUS'' handpiece
• 1 Common cable
• 1 Supply cables
• 1 Small common plate
• 1 Big common plate
• 1 Cart for device and accessories 516x516x940mm
• 1 Small flat plate
• 1 Medium flat plate
• 1 Small rounded plate
• 1 Medium rounded plate
• 1 Conductive cream (1L)
• 1 Meter
