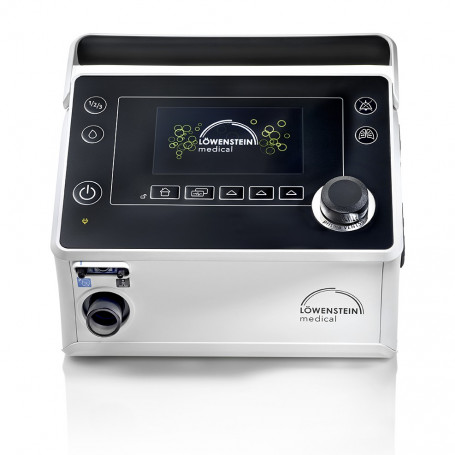

Weinmann Prisma VENT50 BiPAP ventilator with battery

Weinmann Prisma VENT50 BiPAP ventilator with battery as a follow-up to the successful launch of Prisma VENT30 and Prisma VENT40 in 2016, for non-invasive and invasive ventilation.

The Prisma VENT50 can be used to ventilate with the leakage system and also with the single circuit with a patient valve. Other features include pressure and volume-controlled mouthpiece ventilation modes (MPVp and MPVv), LIAM (Lung Insufflation Assist Maneuver) for cough support and secretion management, and a wide pressure range of up to 50 hPa.

The Prisma VENT50 ventilator is equipped with so many extras, that it can treat a much broader spectrum of disorders. The Prisma VENT50 also has a complete alarm management system, power pack, rechargeable battery with a capacity of up to 12 hours, and integrated oxygen connection.

In particular, the turbine of the BiPAP Weinmann prisma VENT50 ventilator draws in ambient air through a filter and advances it with therapy pressure through the system tube and breathing access to the patients. Based on recorded pressure and flow sensor signals, it controls the turbine according to the breathing phases. Also, the control surface is used to display and set the parameters and alarms available to you.

Weinmann prisma VENT50 ventilator collects data and treatment data is stored on an SD card so that it can be evaluated via PC software. At the same time, it can be connected to prisma CLOUD via modem to evaluate treatment data.

Features:

• Display: large display, high contrast, sharpness, and natural colors.
• Easy handling: intuitive menus, simple operation, quick optimization.
• 360° easy turn
  Allover compatibility
• Low noise
