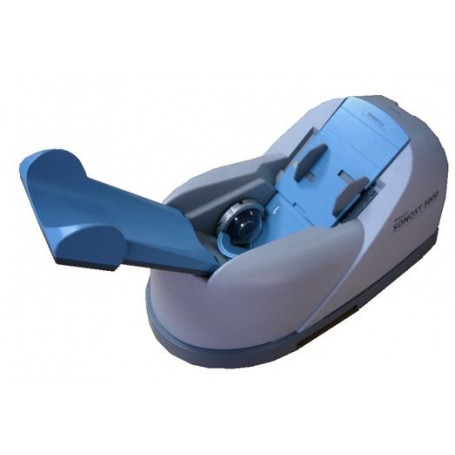

Sonost 2000

• Optimal measuring time by QUS BMD (Bone Mineral Densitometer): 15 seconds
• Remove any errors caused by minute movement of patients by using in-house developed supporting board
• Easy to maintain the outer surface of the equipment devices clean as it can be easily cleaned with water
• Unmatched economicity with least breakage of balloons which are made of special silicon material

• Dry type which is easy to use, adopting recent trend of ultrasound osteoporosis diagnosis equipments
• Superior repeatability based on our patented devices which enable users to put their feet on the right spot.
• Measure two parameters; SOS and BUA.
• Minimal difference in repeatability due to temperature change since BQI (Bone Quality Index) is calculated, using a combination of SOS and BUA.
• Fixed probes on both sides of the equipment keep the equipment more stable than other competitive products, removing errors in repeatability.
• Excellent stability and repeatability since all devices are electronic ones, not mechanical ones.
• Easy to clean with water
• Short measuring time: within 15 seconds
• Easy to install due to its compact size and light weight
• Usable as portable equipment when linked to notebook PC

• Phantom for calibration
• 4 x Balloon
• U/S Gel
• Communication cable
• User manual

Sonost 2000 Specification
Measurement Method: Ultrasound
Measurement Site: Calcaneus (Heel)
Measurement Time: 15 sec.
Measurement: SOS-BUA=BQI
Estimated heel BMD and Bone Quality Index (BQI) obtained from measureed Broadband Ultrasound Attenuation (BUA) and Speed of Sound (SOS)
Precision & Accuracy: 1%
QC Check: Daily, using supplied QC phantom
Operating Temperature Range: 17~36 °C
Operating Humidity Range: 20 ~ 80%
Dimension: 400 * 630* 370 mm
Weight: 7.3 kg
