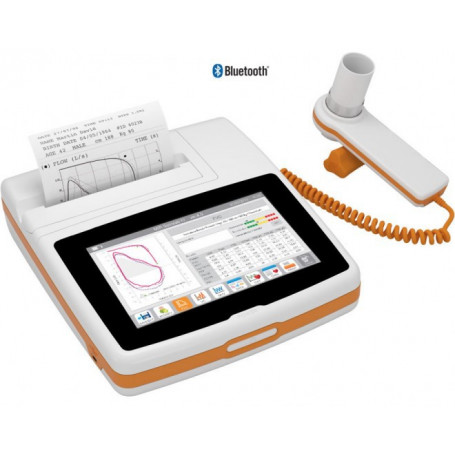

The new MIR New Spirolab Spirometer with a color touchscreen 7-inch is handy and made according to the latest technological requirements. The spirometer can be used with a disposable turbine with an integrated mouthpiece.
The new MIR New Spirolab Spirometer operates as a standalone device (stand-alone) but also in connection with a personal computer (PC-Based) to exploit the potential of WinspiroPRO software.
In standalone mode (Stand Alone Mode) the MIR New Spirolab spirometer controls the spirometric parameters FVC, FEV1, IVC, MVV, and PRE / POST bronchodilation while compared with a wide range of parameters. It also has pediatric animated menus to encourage young patients, but also a fast and silent built-in printer with a customizable print format for immediate printing of the results.
The new MIR New Spirolab spirometer has a long-life rechargeable battery and a database (memory) for up to 10,000 spirometry tests and 500 hours of oximetry combined with powerful and flexible search services.
The new MIR New Spirolab spirometer in PC-based mode, using WinspiroPRO® software connected to a personal computer via wireless Bluetooth 2.1 or USB cable.
The WinspiroPRO software provides real-time curves Flow / Volume and Volume / Time with PRE / POST bronchodilation while compared with a wide range of eligible parameters on your computer. It includes free online updates.
The MIR New Spirolab spirometer features pediatric animated menus to encourage young patients with a wide variety of images and animations. The use of a patented system of MIR allows the children to see cartoons on the screen which prompt them to make spirometry. A particularly useful feature in primary care outpatient clinics.
Displays and prints curves Volume / Time, Flow / Volume, and curves of patient therapy development (trends). Also performing spirometry with a methacholine challenge test. Finally, it has updated basis (Quanjer 2012-GLI) predicted values and integrated browser for direct access to the database.
The MIR New Spirolab spirometer has FlowMIR® Disposable Turbine, an exclusive patent of Mir. It offers maximum precision and hygiene. Each turbine is calibrated individually with a computer in a factory. It includes a paper mouthpiece and is individually packaged. Disposable turbines is an economical alternative to the turbo MP and no need for cleaning and disinfection of the turbine, or to replace the anti-microbial filter. 100% guarantee of hygiene! It complies with the standards of accuracy ATS / ERS.
Spirometry parameters:
FVC, FEV1, FEV1 / FVC, FEV1 / VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5 / FVC, FEV0.75, FEV0.75 / FVC, FEV2, FEV2 / FVC, FEV3, FEV3 / FVC, FEV6, FEV1 / FEV6, FEV1 / PEF, FEV1 / FEV0.5, FIVC, FIV1, FIV1 / FIVC, PIF, FIF25, FIF50, FIF75, FEF50 / FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT / tI, tE / tTOT, MVV (measured), MVV (calculated).
Oximetry parameters:
%SpO2 and Pulse Rate (Min, Max, Average), Test duration, Total SpO2 Events, T90% (SpO2 time ≤89%), T89% (SpO2 time ≤88%), T40 (Bradycardia duration with Pulse Rate 120 BPM)
The package includes:
- Carrying case
- Battery charger
- USB cable
- 1 roll of thermal printer paper
- 1 Nose clip
- 60 FlowMIR turbine
- PC Software
- Oximetry sensor for adults
Compatible turbines:
Mouthpiece | Turbine Disinfection |
Turbine Calibration |
Packaging | Antiviral filter |
|
---|---|---|---|---|---|
FlowMIR Disposable Turbine |
Included Disposable |
Not required |
Not required |
60 pieces | Available Disposable |
Reusable Turbine | Required, Not included |
Required | Required | 1 unit | Required, Disposable |
Data sheet
- Additional functions
- Bluetooth
- Manufacturer reference
- 911081E2
