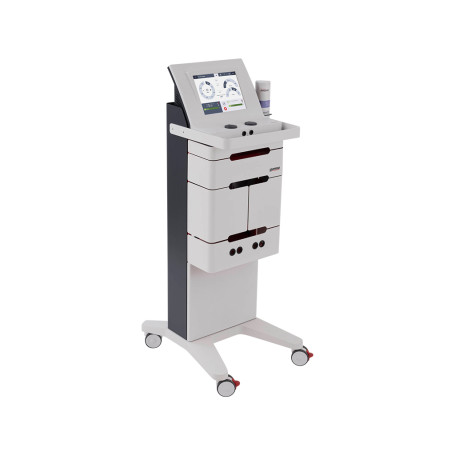

Gymna Duo 400Μ electrotherapy unit with mobile base

The Gymna Duo 400M electrotherapy unit with mobile base is a device designed for electrotherapy applications, featuring the user-friendly Gymna mobile 400. This advanced unit includes GTS - Gymna's Guided Therapy System, which enhances the therapeutic experience.

The Duo 400M is equipped with a functional Mobile 400 that allows for easy storage and access to all accessories, including space for the optional modular vacuum unit.

Features:

• Colour-guided therapy
• Customisation wizard
• Suited for the 3 therapeutic goals: pain relief, tissue repair, and muscle stimulation
• Electrode placement with real-life pictures
• Medical E-book with an anatomical library and clinical information, and help screens
• Evidence-based therapy in line with the latest scientific studies
• New protocols can be uploaded via USB
• 31 currents: incl. µCurrent & High Voltage
• Therapies: Electrotherapy, 2 and 4 poles, 2 fully independent channels
• S-D curve diagnostic programs
• Simultaneous therapy (two different indications treated simultaneously)
• Currents: 31
• Current forms: see next pages

Functionalities:

• Objectives: 143
• Indications: 170
• Diagnostic: 9
• Body Area: 137
• Cellular effects: 16
• Default therapy programs: 48
• Free memory: 850
• Anatomical library: 91
• Can be connected to Vaco 400

Technical specifications:

• Languages: 13
• Mains voltage: 100–240 VAC, 50/60 Hz ±10%
• Max. Power-in operation: 100 VA
• Device (W x H x D): 360 x 260 x 285 mm
• Weight incl. accessories: ~7.8 kg
• Mobile 400 (W x H x D): 500 x 1100 x 600 mm
• Weight Mobile: ~36 kg
• Electrical safety protection: Class II
• Applied parts: Type BF
• MDD Classification: IIa
• Conformity: Directive MDD 93/42/EEC

Standard Accessories:

• Mains lead
• Electrode cable 2-pole mini/2mm (2)
• Test plug, F/F, 2 mm
• Rubber electrode 6 x 8 cm 2 mm (4)
• Chamex bag 6 x 8 cm (4)
• Fixing strap, elastic 5 x 60 cm (4)
• Visual Analogue Scale (VAS-Score)
• Touch pen
• Gymna Mobile 400
• Rotary button silver (2)
• Manuals: Safety Instructions, Quick start manual, CD user manual (multi-language)
