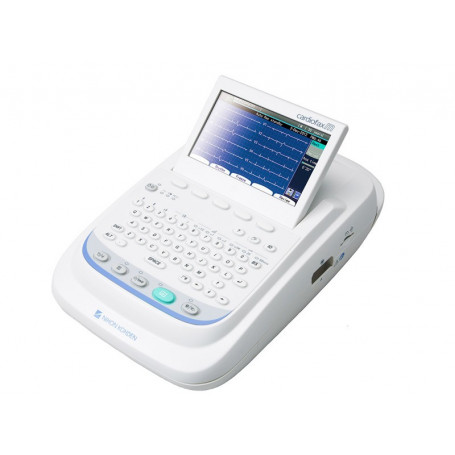

Nihon Kohden Cardiofax M ECG-2350

Καρδιογράφος Nihon Kohden ECG-2350 Cardiofax M
zoom_out_map
chevron_left chevron_right

Cardiofax M ECG-2350 with simple operation and intelligent analysisis. It is convincing in every moment.

Nihon Kohden cardiofax M ECG-2350 with simple operation and intelligent analysisis. It is convincing in every moment. The Cardiofax M ECG-2350 is easy-to-view color LCD – 7.0 inch color backlit LCD lets you view simultaneous 12-lead ECG waveform and the data more easily. Adjustable display provides you smooth operation and enhanced visibility. It has easy data entry. For identifying patients and easier filing, you can enter patient ID and name with alphanumeric keys. The bar code reader and magnetic card reader contribute to enter the patient information quickly without any human errors. Paper-saving recording – Preview function allows to check waveforms and analysis results before recording. On paperless mode, waveform and analysis results can be transferred to a PC for paperless review.

Nihon Kohden cardiofax M ECG-2350 also, has an easy data transfer by wired or wireless LAN – Up to 400 ECG files can be stored in the internal memory. Approximately 3,000 ECG files can be stored in an SD memory card. You can also transfer the ECG data to a PC using LAN or W-LAN. The Nihon Kohden cardiofax M ECG-2350 developed a new technology to provide 18-lead ECG information from a standard 12-lead ECG by synthesis of the additional leads V3R to V5R and V7 to V9. Especially when presentation is not typical or initial 12-lead ECG is negative, diagnostic inaccuray may cause harmful delays. Proper ischemia detection may prevent myocardial damage or may shorten the time to PCI (precutaneous coronary intervention) indication.

Patient safety is optimized and may reduce time to reperfusion. Especially in emergencies, synECi18 is regarded as a useful triage tool to enhance outcomes through early recognition and stratification. High level 12-lead ECG analysis – Nihon Kohden cardiofax M ECG-2350 includes Nihon Kohden’s latest interpretation program, ECAPS12C analysis program. It provides simultaneous 12-lead ECG acquisition of up to 24 seconds and analysis with approximately 200 findings and 5 judgment categories. ECAPS12C can also find typical waveforms of Brugada-type electrocardiogram.

516551X
3 kg
Data sheet
Channels
12
