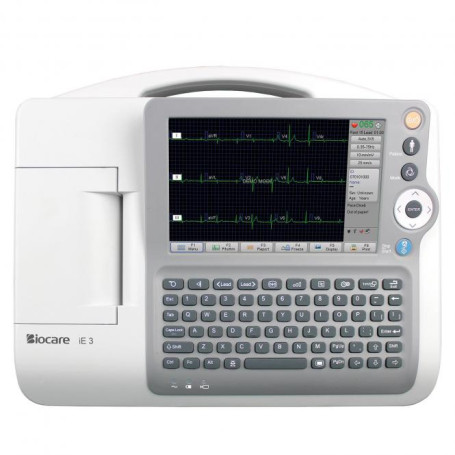

Biocare iE-3 3-channel cardiograph

The Biocare iE-3 3-channel cardiograph offers reliability and accuracy in your diagnoses. With a 220V/AC power supply and an internal rechargeable battery that provides autonomy for over three (3) hours of continuous operation, it is ideal for clinics and medical practices that require portability and flexibility. The Biocare iE-3 3-channel cardiograph features an SD memory card slot, allowing for easy expansion of internal memory and the transfer or copying of cases for added security and organization.

Equipped with cardiograph technology that offers a resolution of 8000 samples/second and automatic diagnosis for adults and children, it ensures precise and reliable measurements. The Biocare iE-3 3-channel cardiograph includes a thermal printer with 80 mm paper and multiple recording speeds (5, 6.25, 10, 12.5, 25, 50 mm/s), combined with a frequency response of 0.05 Hz to 250 Hz. Additionally, it provides simultaneous display of the 12 leads and has a high-resolution (1280 x 768) 7-inch color TFT screen.

Technical features of the Biocare iE-3 3-channel cardiograph:

• High resolution (1280 x 768) colour TFT screen with a diagonal of 7 inches.
• Simultaneous display of all 12 received leads.
• Thermal printer with 80 mm paper and recording speeds of (5, 6.25,10,12.5, 25, 50) mm/s.
• Digital cardiograph technology with a resolution of 8000 samples/sec.
• Frequency response 0.05 Hz~250 Hz.
• Automatic and manual sensitivity adjustment ( 1.25, 2.5, 5, 10, 20, 10/5, 20/10)mm/mV & Auto Gain.
• Automatic cardiograph diagnosis for adults.
• Automatic cardiograph diagnosis for children.
• Implanted pacemaker detection.
• Power supply 220V/AC and via internal rechargeable battery which provides autonomy for more than three (3) hours of continuous operation.
• Internal digital data storage memory with a capacity of 3,000 cardiography files.
• SD memory card port for expanding the internal memory and transferring - copying of incidents.
• Two USB ports for expanding the internal memory and barcode scanner connection.
• Network port (LAN) for sending data to a central station.
• Device weight with battery = 2.3 kg.
• CE mark & ISO.

The packaging of the Biocare iE-3 cardiograph includes:

• AC power supply.
• Rechargeable battery.
• 10-pole ECG cable.
• Adult ECG tip electrodes (multi-purpose pegs).
• Pre-heart ECG Electrodes (Adult Multipurpose Suction Cups).
• One printer paper.
• Operating manual.
• A 2 year warranty of good working order.
• Technical support with spare parts and service for 10 years.
