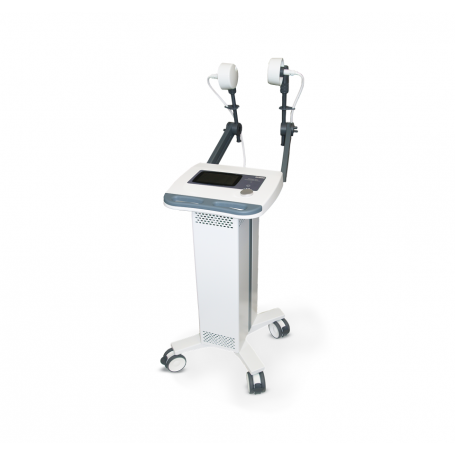

Wheeled short-wave diathermy Gymna Thermo 500+ with continuous & pulsed emission, with 2 multiple adjustable electrode arms & power up to 1000W

€11,116.60 (tax incl.) €8,965.00 (tax excl.)
Tax included
block Ships in 4 - 10 days

Shortwave diathermy Gymna Thermo 500+ for continuous pulsed emission of two outputs on a wheeled base that produces electromagnetic energy for medical application. It has a maximum power of 400W in continuous and 1000W in pulsed emission. The pulse range ranges from 20 - 400μsec with a frequency of 5 - 800Hz.

The Gymna Thermo 500+ diathermy device comes with 2 multi-adjustable electrode arms and 2 100mm electrodes. It is easy and comfortable to use thanks to the color touch screen and the central rotary switch.

The waves penetrate deep into the body and can have thermal and atherosclerotic effects. The thermal effect consists of heating which significantly improves circulation and the athermal effect creates cellular effects. Both contribute to strong physiological effects that make the method suitable for application in a wide range of conditions.

Details:

  • Continuous & pulsed short wave therapy in one device
  • Wide range of pulse and amplitude frequencies
  • The output is automatically coordinated with the patient
  • Color touch screen that can be used even with surgical gloves
  • The clean user interface allows quick setup
  • On-screen user assistance & iconographic guidance with clinical protocols
  • Indications: Chronic musculoskeletal disorders, Acute soft tissue injuries, Circulatory problems

Technical characteristics of a Gymna Thermo 500+ diathermy device:

  • Dimensions (WxDH): 470 x 470 x 940 mm
  • Power supply voltage: 100-240Vac, 50/60 Hz.
  • Weight: 38kg
  • Frequency: 27.12MHz
  • Output power: 400W maximum in continuous operation, 1000W maximum in pulse mode
  • Output modes: Continuous, Pulsed 1 in 3, Pulsed 2 in 3 and Pulsed 3 in 3
  • Classification: Class I type BF - IEC 60601-1
  • Pulse width: 20-400μsec
  • Pulse frequency: 5 - 800 beats / second
  • Tuning: Automatic
  • Timer: 0 - 30 minutes with the device off and alarm at the end of treatment
  • MDD (Medical Device Directive) and CE certification

Diathermy contents:

  • 2 electrode arms
  • 2 x 100mm electrodes and cables
  • Output cable
  • User manual

Accessories (optional):

  • Monopulse inductive applicator
  • Flexipulse capacitive applicator
  • 100mm capacitive electrodes and cables
  • 50mm capacitive electrodes and cables
  • 1 pair of rubber electrodes 180x120mm with felt spacers
  • 1 pair of rubber electrodes 260x180mm with felt spacers
  • 4 felt spacers for electrodes 180x120mm
  • 4 felt spacers for electrodes 260x180mm
Gymna
410929
43 kg
