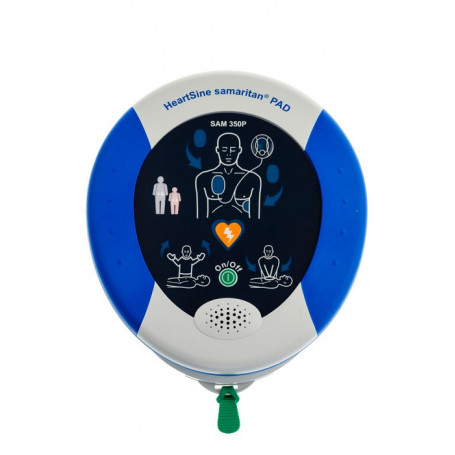

Sudden Cardiac Arrest (SCA) is a leading cause of death globally. Response time is critical for survival. HeartSine's Samaritan PAD 350P was designed especially for use in public areas by providing a sophisticated defibrillator for adult or pediatric use, inside a lightweight and easy-to-operate system.
Its advanced technology is balanced against the demands of real world use. The samaritan 350P uses HeartSine’s practical Pad-Pak, which incorporates the battery and electrodes in a single-use cartridge – meaning only one expiration date to monitor and only one item to replace after use.
The samaritan 350Pis suitable for use on adults and children. For children younger than 8 years or weighing less than 25 kg (55 lbs), a Pediatric-Pak is available.
How it works:
The HeartSine samaritan PAD is an automated external defibrillator (AED) that analyzes the heart rhythm and delivers an electrical shock to victims of Sudden Cardiac Arrest in order to restore the heart to normal rhythm.
This user-friendly AED provides easy to follow visual and audio prompts to guide the rescuer from pad application to shock delivery, if required. It’s lifesaving, pure and simple.
It has a 10 years warranty.
HeartSine’s samaritan 350P PAD offers unique features:
It is compact in size but big on ability. It is portable and lightweight. At only 2.4 lbs (1.1 kg), weighs less and is up to 56% smaller than other portable defibrillators AED.
Highest level of dust/moisture protection: The samaritan PAD has a rating of IP56, providing the 350P defibrillator with the highest level of protection from dust or moisture ingress in the industry.
Durable: HeartSine's Samaritan PAD 350P resists shock and vibration and carries an IP56 Rating, the industry’s highest rating against dust and moisture ingress. It also carries a ten-year unit warranty that demonstrates the reliability of this quality unit.
Advanced technology: Samaritan PAD 350P utilizes proprietary electrode technology, advanced and stable firmware, and proprietary HeartSine's SCOPE™* Biphasic Technology (an escalating and low-energy waveform that automatically adjusts for patient impedance differences) to assess rhythm and maximize effective shock delivery if necessary.
Self-Compensating Output Pulse Envelope technology automatically compensates energy, slope and pulse envelope for the patient.
It is easy-to-follow visual and voice prompts.
User-friendly: Samaritan PAD 350P features easy-to understand visual and voice prompts that guide a user through the process, including CPR coaching. Three large, easy-to-see icons facilitate the rescue process: “Attach pads,” “Do not touch the patient,” and “It is safe to touch the patient”.
Two-button operation: Only two buttons, ON/OFF and SHOCK, are required for straightforward operation.
Always ready: A System Status Ready Indicator flashes to show that the complete system is operational and ready for use. The device automatically runs self check each week. It is a real Economy for the real world.
Two parts, one expiration date: HeartSine's Pad-Pak cartridge combines battery and electrode pads, with just one expiration date to monitor.
Low cost of ownership: With a shelf life of four years from date of manufacture, the Pad-Pak offers significant savings over other defibrillators that require separate battery and pad units.
Protects both adults and children: The HeartSine PAD’s built-in intelligence and unique Pediatric Pad-Pak, which is available for 1-8 years of age (<25 kg or 55 lbs), ensure the appropriate energy level is delivered for children.
Field upgradeable: Easily upgrade in the field to the latest AHA/ERC guidelines.
Physical With Pad-Pak™ Inserted
Size: 8.0 in x 7.25 in x 1.9 in (20 cm x 18.4 cm x 4.8 cm)
Weight: 2.4 lbs (1.1 kg) including Pad-Pak Battery
Operating/Standby Temperature: +32°F to +122°F (0°C to 50°C )
Temporary Transportation Temperature: 14°F to 122°F (–10°C to 50°C) for up to two days.
Unit must be returned to standby/operating temperature for 24 hours before use.
Relative Humidity: 5% to 95% (non-condensing)
Water Resistance: IEC 60529/EN 60529 IP56
Altitude: 0 to 15,000 feet (0 – 4,575 meters)
Shock: MIL STD 810F Method 516.5,
Procedure I (40 G’s)
Vibration: MIL STD 810F Method 514.5+ Category 4 Truck Transportation – US Highways Category 7 Aircraft – Jet 737 & General Aviation (Exposure)
EMC: EN 60601-1-2 Radiated Emissions: EN55011
Electrostatic Discharge RF Immunity: EN61000-4-3 80MHZ-2.5GHZ (10 V/m)
Magnetic Field Immunity: EN61000-4-8 (3 A/m)
Aircraft: RTCA/DO-160F, Section 21 (Category M)
Falling Height: 3.3 feet (1 meter)
